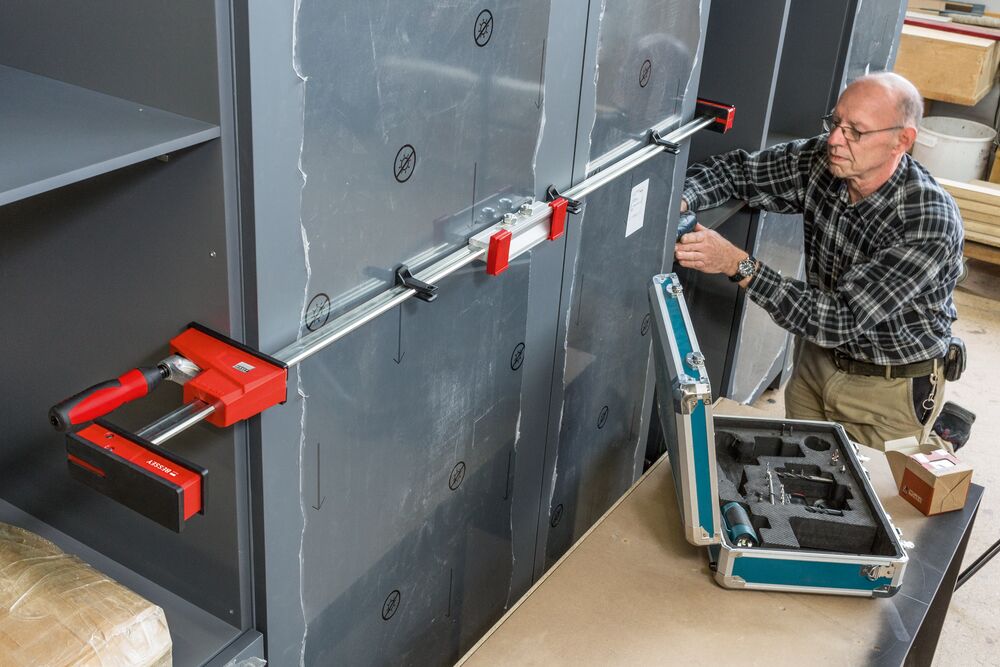

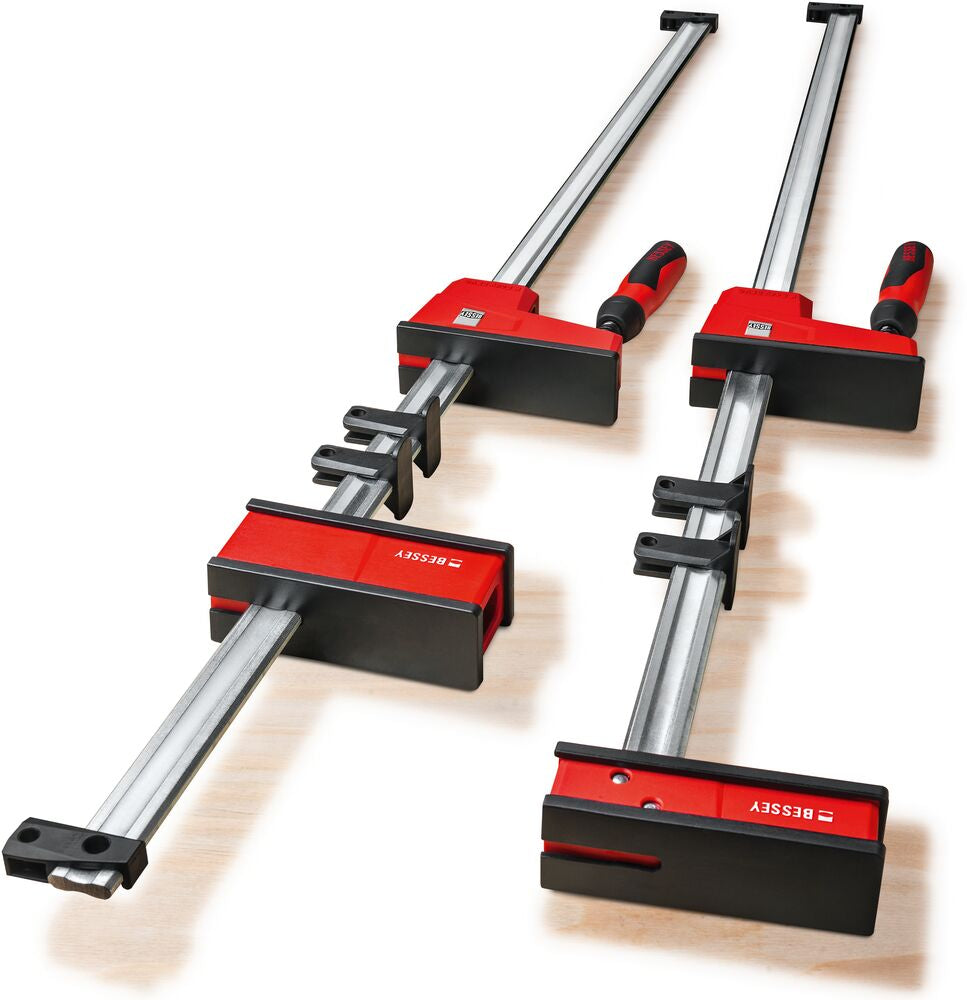

The BESSEY K Body® REVO™ fixed jaw parallel clamps are class-leading examples of BESSEY’s commitment to continuous improvement. Powerful 90 degree, no-slip clamping rated at a nominal 1700 lbs of everyday clamping force. This clamp can be quickly and easily set up for clamping or spreading without the use of secondary tools. Ideal for precision cabinetry, heavy-duty laminations and robust general clamping.
Well Thought Out

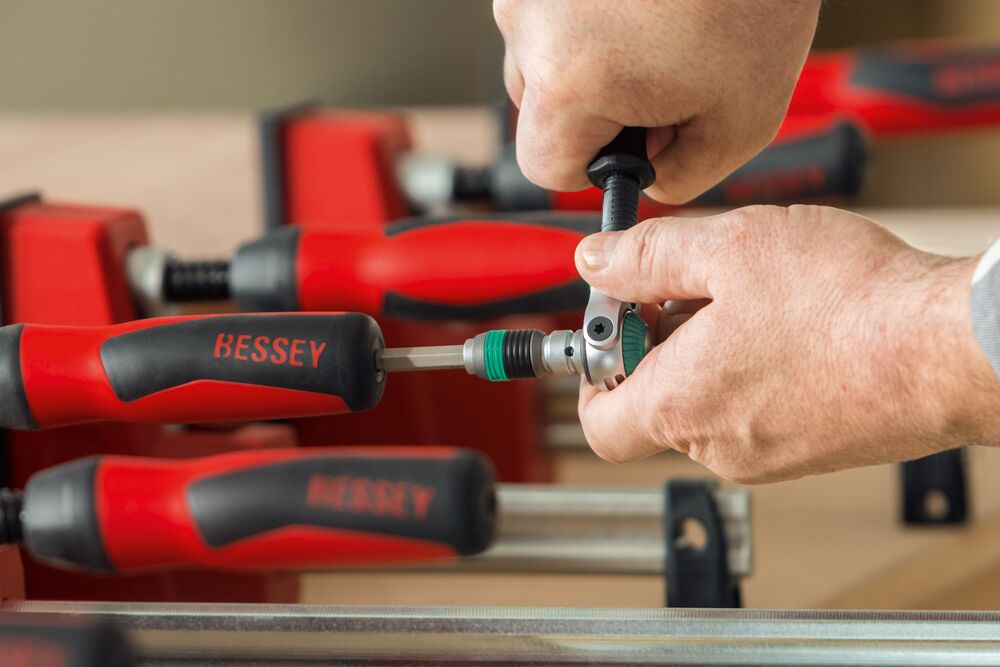

Ergonomically formed 2-component handle with steel socket for applying force with a hex
key or driver when desired (max. torque 17 Nm)
Powerful with Simple Set Up and Operation
Secure clamping force up to 1700 lbs. Operating jaw stays where you put it for easy set
up. Position where you like and apply clamping force.
Precise and Gentle
Workpieces with sensitive surfaces can be clamped and spread, parallel to each other.

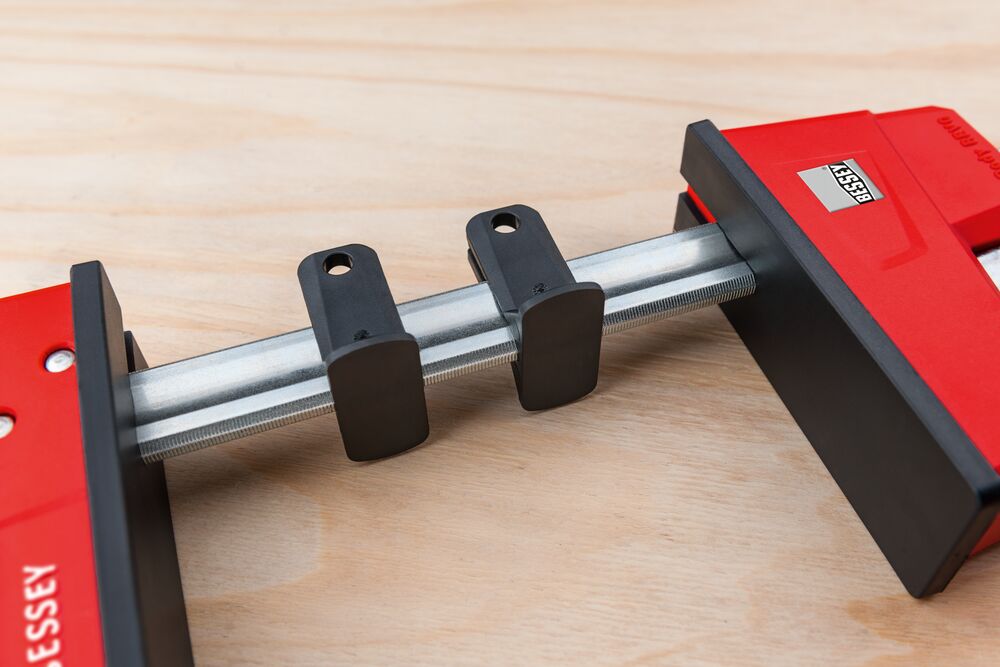

Workpiece supports also prevent the workpiece from coming into contact with the rail.
Cold Drawn Steel Rail Bar
Produced and tested at BESSEY‘s own mills with consistently high quality and the
utmost precision in cutting-edge facilities.
Large Clamping Surfaces

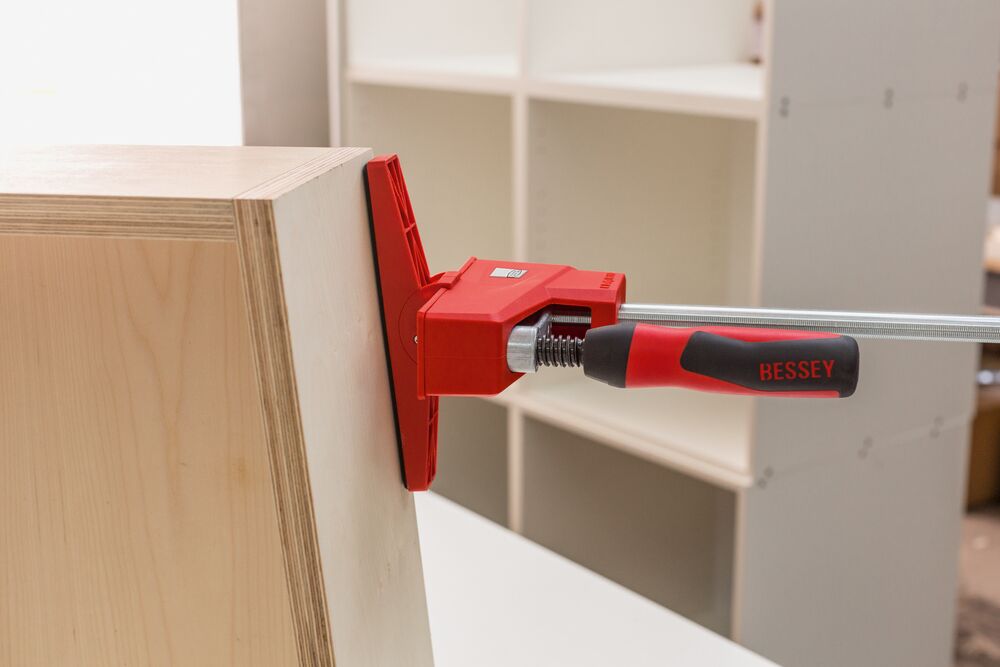

Clamping surfaces are perpendicular to the rail. Three removable pressure caps that
are repellent to glue, and resistant to paint and grease solvents. Large surface areas
distribute high clamping force evenly.
|
Clamping Capacity |
Throat Depth |
Clamping Force |
Approx. Weight |
|
| KRE3524 | 24" | 3 1⁄4" | 1700 lbs | 6.06 lbs |
| KRE3531 | 31" | 3 1⁄4" | 1700 lbs | 6.86 lbs |
Areas of Application
- Cabinet Making
- Hardwood Glue-ups
- Door and Window Assembly
- Woodworking Jigs and Fixtures
- Furniture Building
- Home Renovation Projects
